1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

Name: 1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
Brand: ruiting
Price: 1 USD

Brand Name : ruiting

Model Number : RTFQ-1100

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case

Weight : 2500KGS

Warranty : 1 Year

Computerized : Yes

Voltage : 380V

Dimension(l*w*h) : 2400*2600*1700mm

Product name : 1100mm paper roll cutter machine with hydraulic loading

Speed : 220m/min

Precision : ±0.1mm

Max.rewind diameter : 600mm

Max unwinding diameter : 1000mm

Contact Now

1100mm paper roll cutter machine with hydraulic loading

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

1) 10 sets of round knife in the machine(If you slit film, we will offer you 10 sets straight knife)

2) Unwinding and rewinding controlled by magnetic powder brake and clutch

3) Use web guide system

4) Auto tension control

5) Have meter counting

6) Use frequency inverter to control the speed

7) PLC control system, touch screen operate

8) With auto loading system

Main Technical Specification:

Max. web width	1100mm
Max. unwinding diameter	600mm
Max. rewinding diameter	500mm
Min. itemize width	20mm
Slitting precision	±0.2mm
Cutting speed	5-220m/min
Overall dimensions(LWH)	2.42.61.7m
Machine weight	2500kg

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

Product Tags:

1100mm Paper Roll Cutter Machine

Hydraulic Loading Paper Roll Cutter Machine

PLC paper roll cutting machine

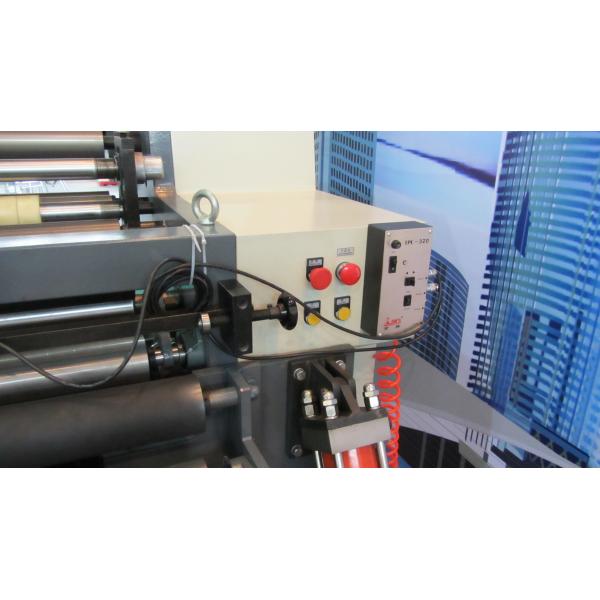

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading Images
