Middle Speed Foil Slitting Machine 380V 3 phase 50HZ With Web Guide System

Name: Middle Speed Foil Slitting Machine 380V 3 phase 50HZ With Web Guide System
Brand: ruiting
Price: 1 USD

China Middle Speed Foil Slitting Machine 380V 3 phase 50HZ With Web Guide System wholesale

Brand Name : ruiting

Model Number : RTYS-1600D

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 25 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case

Weight : 2600KGS

Warranty : 1 Year

Computerized : Yes

Voltage : 380V,3phase,50HZ

Dimension(l*w*h) : 2000*2650*1350mm

Product name : 1600 Middle Speed Foil Slitting Machine With Web Guide System

Speed : 200m/min

Precision : ±0.1mm

Type : foil,plastic film, slitting machine

Condition : New

Contact Now

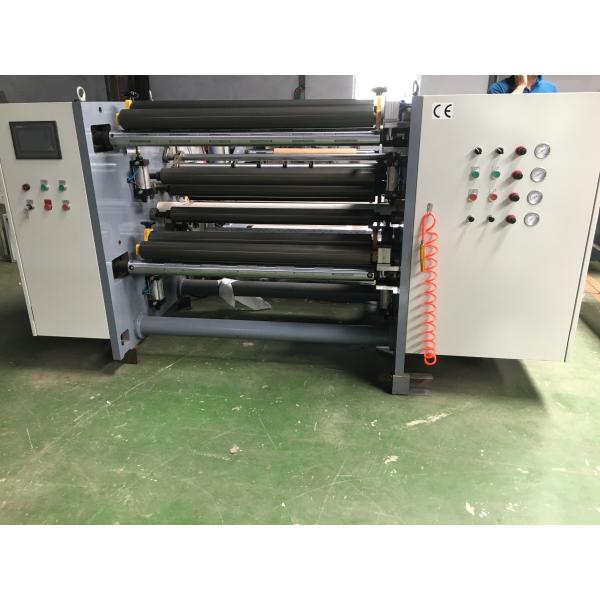

1600 Middle Speed Foil Slitting Machine With Web Guide System

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

) Meter counting

2) EPC web guide system

3) Auto taper tension control

4) 10 sets rotary blade

5) PLC man- machine interface

6) 3 inch shaft for both rewinding

7) Automatic loading system

8) Max unwinding diameter 1400mm

9) Max rewinding diameter 600mm

Main Technical Specification:

Max. web width	1600mm
Max. unwinding diameter	1400mm
Max. rewinding diameter	600mm
Min. itemize width	30mm
Slitting precision	±0.2mm
Cutting speed	5-200m/min
Overall dimensions(LWH)	2.02.651.35m
Machine weight	2600kg

Middle Speed Foil Slitting Machine 380V 3 phase 50HZ With Web Guide System

Product Tags:

Middle Speed Foil Slitting Machine

3 Phase Foil Slitting Machine

Middle Speed Foil Slitting Machine 380V 3 phase 50HZ With Web Guide System Images
